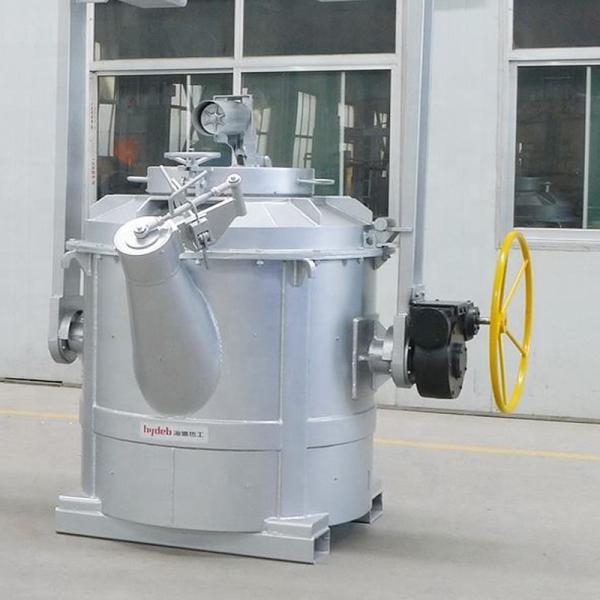

Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment

Brand Name : HYDEB

Model Number : HBQ-256

Certification : CE ISO9001

Place of Origin : Jinan, China

MOQ : 1 set

Price : 16000USD/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per year

Delivery Time : 45 workdays

Packaging Details : Standard exporting package

Power (kW) : Power (kW):

Product Name : Molten Aluminum Transfer Ladle

Molten Aluminum Transfer Ladle : more than 90 KM

Capacity : 500-5000KG or customized

Natural temperature drop : less than 10 ℃/h

Weight (T) : T

Contact Now

Long-distance molten aluminum transfer ladle Recycled Aluminum Equipment

Long-distance molten aluminum transfer ladle Recycled Aluminum

Equipment Introduction

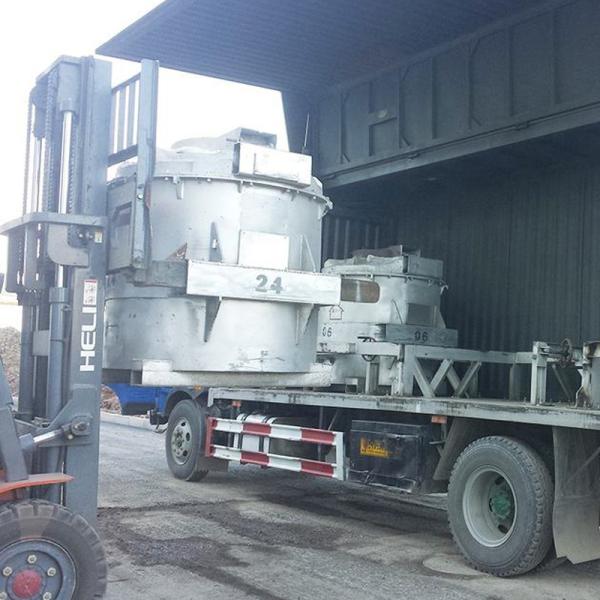

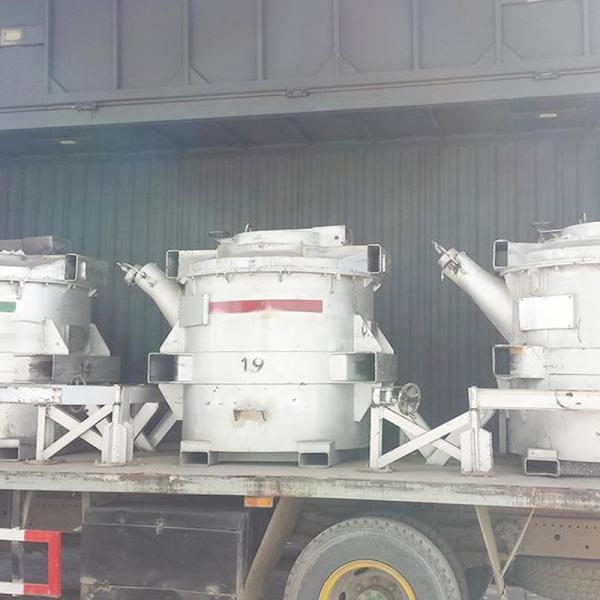

• The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum
casting factory.
Equipment Features
• No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed,
with molten aluminum not to overflow even if the ladle body topples over.
• Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating
Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the
working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle has low surface
temperature, suitable for long-distance transportation.
• Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low
ladle body weight.
• Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory
casting material, has good aluminum tolerance and high resistance to corrosion by molten aluminum.
• High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal
shocks without falling off.
• A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in
continuous use.
• The lade cover actuator (optional) helps to open the ladle cover with ease.
Items Parameters Remarks
Modle HBQ-230
Heating Type Small; Medium; Big
Max. Burning Calorific Value 20x104 Kcal/h
Max Heating Temperature 1100℃
Working Heating Temperature 0-850℃
Heating Rate 0-50 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Air Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤24 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤50 M3/H


Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum EquipmentLong Distance Molten Aluminum Transfer Ladle Recycled Aluminum EquipmentLong Distance Molten Aluminum Transfer Ladle Recycled Aluminum EquipmentLong Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment
