Excellent question. Transferring molten aluminum over a long distance by ladle (also commonly called a crucible or pot in this context) is one of the most challenging and hazardous operations in the industry. It is generally avoided when possible but is sometimes necessary, especially in large foundry complexes or when supplying remote casting stations.
Here is a detailed breakdown of the process, its significant challenges, and the critical safety and equipment measures required.
The Core Challenges of Long-Distance Ladle Transfer
Transporting molten metal (~750°C / ~1380°F) over a long distance amplifies all the risks associated with molten metal handling:
- Heat Loss and Skull Formation: Aluminum solidifies rapidly when its temperature drops below its melting point (660°C). Over a long transfer, the outer layer in contact with the ladle lining can solidify, forming a "skull." This skull reduces the effective capacity of the ladle, contaminates the next melt if it breaks off, and requires chiseling out, which is labor-intensive and damages the refractory lining.
- Safety Hazard: This is the paramount concern. A spill of molten metal is catastrophic. It can cause severe burns, ignite fires, and damage equipment and infrastructure. The risk of a spill increases with distance due to:
* Longer exposure to potential obstacles or uneven pathways.
* Operator fatigue over a longer route.
* Increased chance of traffic interactions in a large facility. - Metal Quality Degradation: Prolonged exposure to air during transfer leads to increased oxidation, forming dross (a mixture of aluminum oxide and entrapped metal). This reduces the yield of clean metal and can lead to inclusion defects in the final cast product.
- Hydrogen Pickup: Molten aluminum readily absorbs hydrogen from atmospheric moisture, which leads to porosity in solidified castings. A longer transfer time means more opportunity for absorption.
- Physical Strain and Logistics: Ladles filled with molten aluminum are extremely heavy. A 1000 lb capacity ladle can weigh over 1500 lbs total. Moving this mass over a long distance requires powerful, reliable, and slow-moving equipment.

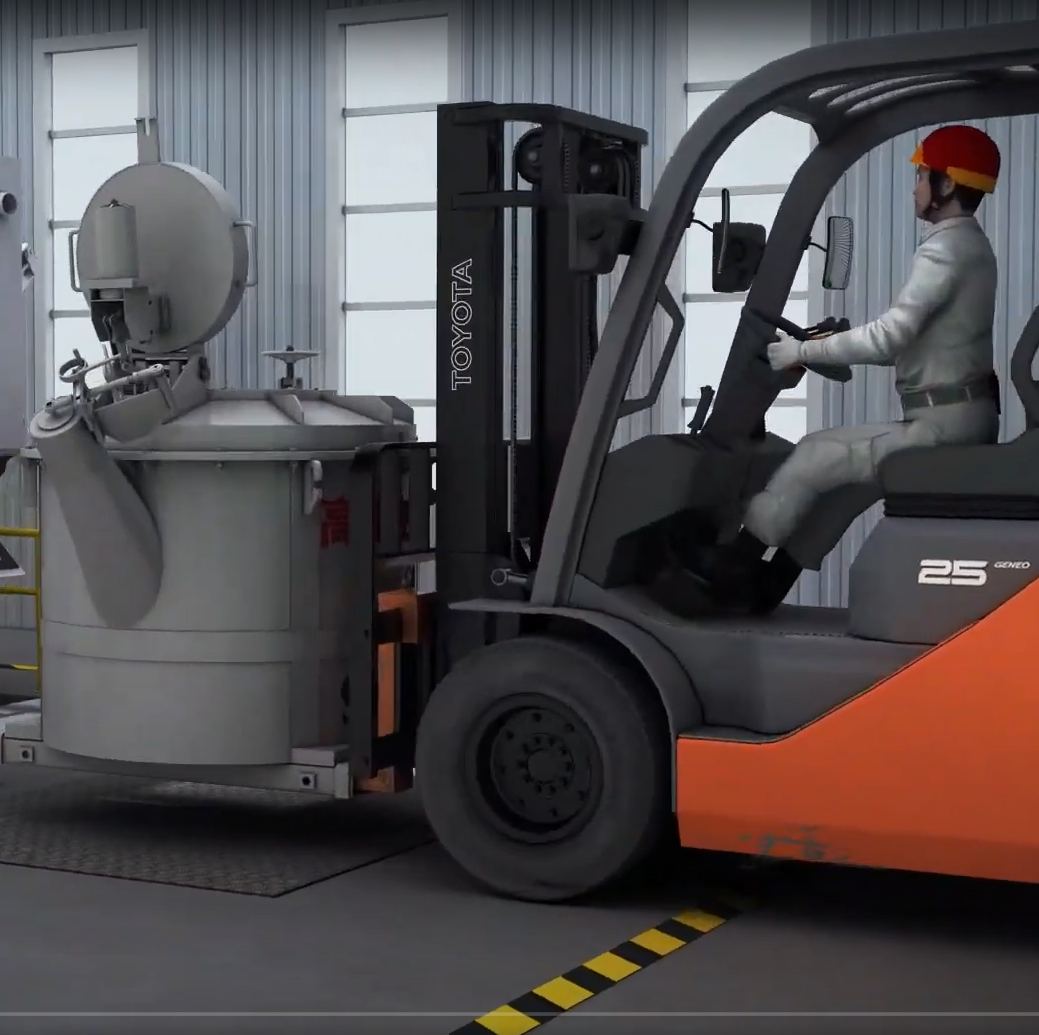

Essential Equipment for Long-Distance Transfer
To mitigate these challenges, specialized equipment is non-negotiable.
| Equipment | Description and Purpose |
| 1. Specialized Ladle/Crucible | • Heated & Insulated: For long distances, ladles are often gas-fired or electrically heated to maintain metal temperature and prevent skulling.
• Lid/Cover: A refractory-lined lid is crucial to minimize heat loss, reduce oxidation, and act as a physical barrier against spills.
• Robust Design: Made from steel with a thick, high-quality refractory lining (e.g., ceramic fiber or castable). |
| 2. Dedicated Transport Vehicle | • Low-Speed, High-Stability Vehicles: These are not standard forklifts. They are purpose-built ladle carriers or heavy-duty lowboy trailers towed by a tugger.
• Features: Extremely low center of gravity, multiple axles for stability, slow travel speeds (walking pace), excellent brakes, and clear visibility for the operator. |
| 3. Pre-Defined and Prepared Route | • Clear Pathway: A dedicated, marked route that is always clear of obstructions.
• Smooth Surface: The path must be level, paved, and free of potholes or bumps that could cause sloshing.
• Limited Traffic: The route should have minimal to no cross-traffic from other vehicles or personnel. |
Critical Safety Protocols
The procedure is governed by strict safety rules:
- Do Not Overfill: The ladle must never be filled beyond its safe working capacity (typically 80-85% full) to prevent splash-out during movement.
- Secure the Lid: The lid must be securely placed on the ladle before moving even an inch.
- Travel Speed: The carrier must move at a very slow, controlled speed (often no faster than a walking pace).
- Spill Preparedness: The area along the transfer route must be clear of all flammable materials and standing water. Water is extremely dangerous as it can cause a steam explosion if it contacts molten metal. Sand or other dry, non-combustible materials should be available for spill containment.
- Personal Protective Equipment (PPE): Mandatory for all personnel in the area:
* Face shield and safety glasses
* Long sleeves and pants made of flame-resistant (FR) material
* Aluminized apron and leggings (for those near the ladle)
* Safety boots with metatarsal guards - Communication: The operator must have a clear line of sight or be in constant radio communication with a spotter to navigate the route safely.
Industry Best Practice: Avoid It If Possible
Due to the immense risks and costs, the industry generally seeks alternatives to long-distance molten metal transfer by ladle:
- Satellite Melting: Setting up smaller holding furnaces or melting pots closer to the point of casting.
- Launder Systems: Using heated, refractory-lined channels for fixed, in-plant transfer (though this has length limits due to temperature drop).
- Transporting Solid Ingot: It is often safer, more efficient, and cheaper to transport solid aluminum ingots and remelt them at the point of use, despite the energy cost. This is the most common alternative.
In summary, while technically possible, long-distance transfer of molten aluminum by ladle is a high-risk operation reserved for specific scenarios where other options are not viable. Its success is entirely dependent on specialized equipment, meticulous planning, and an uncompromising commitment to safety protocols.
