1. EQUIPMENT INTRODUCTION
• The motor drives the graphite rotor immersed in the aluminum liquid to rotate, and at the same time, high-purity nitrogen (or argon) is introduced into the aluminum liquid through the graphite rotor. The rotor of the refiner can effectively break up the inert gas into small bubbles. The bubbles are evenly dispersed and floated in the molten aluminum. The hydrogen partial pressure in the molten aluminum is higher than that in the bubbles, and the hydrogen will diffuse into the inert gas and float to the liquid surface with the bubbles, thereby effectively reducing the hydrogen content in the molten aluminum.
• Dehydrogenation/impurity removal/dealkalization
• One of the most effective molten aluminum degassing technologies, the first choice for high-end aluminum castings!
2. EQUIPMENT CONFIGURATION
| Name | Qty | Remark |
| Host part | Mobile box walking mechanism | 1 set | |
| Tilting system | 1 set | |
| Rotor rotation system | 1 set | |
| Rotating Mechanism Swing System | 1 set | |
| Fluxing spraying system | 1 set | |
| Frame | 1 set | |
| Control system | Nitrogen / argon gas system | 1 set | |
| Electric control system | 1 set | |
| Control cabinet | 1 pc | |
| Others | Graphite rotor | 1 set | |
| Graphite shaft | 1 set | |
| Main shaft insulation board | 1 set | |
3. MAIN PARAMETERS
| Item | Data | Remark |
| Refined gas | purity % | ≥99.996 | High purity nitrogen or argon |
| water content ppm | ≤ 3 |
| O2 ppm | ≤ 5 |
| Pressure MPa | 0.1-0.6 adjustable |
| Flow rate L/min | 15～30 adjustable |
| Compressed air | Pressure MPa | ≥0.4 | |
| Flow rate m3/h | ≥0.5 | |
| Power parameters | Power phase number | 3 | |
| voltage V | 380 |
| Frequency Hz | 50 |
| Gross power kW | 15 |
| Mobile box mobile motor | Power kW | 0.75 | Used for mobile box walking |
| Rotating shaft motor | Power kW | 11 | Used to drive rotation of graphite shaft |
| Rotating motor of rotating mechanism | Power kW | 0.2 | Used to drive the fuselage rotation |
| Motor of powder feeding device | Power kW | 0.2 | Used to drive the powder feeding device |
| Tilting system | Power kW | 1.5 | Used for mainshaft turnover |
| Rotor swing range | |
| Rotor tilting range mm | See scheme drawing of rotary Fluxing Injector |
| Rotation speed of graphite rotor r/min | 100－400 | Frequency conversion adjustment |
| Refining degassing time min | 0～99 | Time-adjustable |
| Temperature of molten aluminum ℃ | 640-850 | Temperature of Refined molten aluminum |
| Graphite rotor size | Diameter x length mm | Details seeing drawing |
| Graphite rotor size | Diameter x length mm | Details seeing drawing |
| Overall size | Length x width x height mm | Details seeing drawing |
| Weight kg | About 3000 | Subject to actual production |

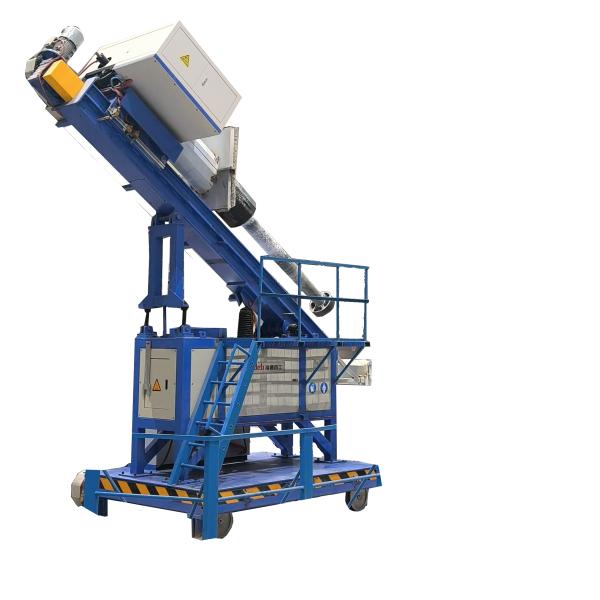

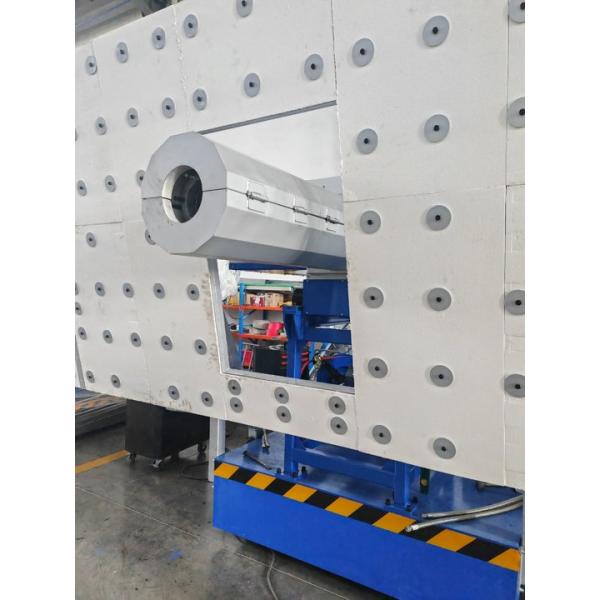

4.EQUIPMENT PICTURES
SUPPORT AND SERVICE
The In-Furnace Rotor Refining Equipment is supported by a complete set of technical services to ensure stable operation and high customer satisfaction. Our experienced technical team provides guidance for installation, debugging, and regular maintenance. We also offer training programs to help users understand optimal refining practices, enhance process control, and fully utilize the equipment's capabilities. Our service team is committed to delivering prompt and effective solutions, ensuring your equipment operates reliably and efficiently in demanding production environments.
PACKING AND SHIPPING:
Product Name: In-Furnace Rotor Refining Equipment
Description: High-efficiency in-furnace rotor system designed for uniform flux dispersion and enhanced aluminum melt purification.
Features:
Corrosion-resistant graphite rotor and shaft
Uniform and controlled refining process
PLC-controlled operation for precision
Suitable for continuous or batch aluminum processing
Packaging:
The In-Furnace Rotor Refining Equipment is securely packed in a reinforced wooden crate with shock-absorbing foam to prevent damage during transit.
Shipping:
We provide global shipping for the In-Furnace Rotor Refining Equipment. Shipping costs vary by destination and selected delivery method. Please allow 2–3 business days for processing before shipment.
FAQ:
Q: What is the brand name of the In-Furnace Rotor Refining Equipment?
A: The brand name is HYDEB.
Q: Where is the In-Furnace Rotor Refining Equipment manufactured?
A: It is manufactured in Shandong, China.
Q: What certifications does the product have?
A: The equipment is certified with CE and ISO standards.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 1 SET.
Q: What are the accepted payment terms?
A: Payment is accepted via T/T (Telegraphic Transfer), with a 30% deposit and 70% before delivery.
